1-Year Secure Network Management Card subscription included
Ideal for high density server and networking applications
Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
Extensive list of compatible products and accessories
Stay on top by defining alarm thresholds in order to avoid overloaded circuits
Zero U toolless installation

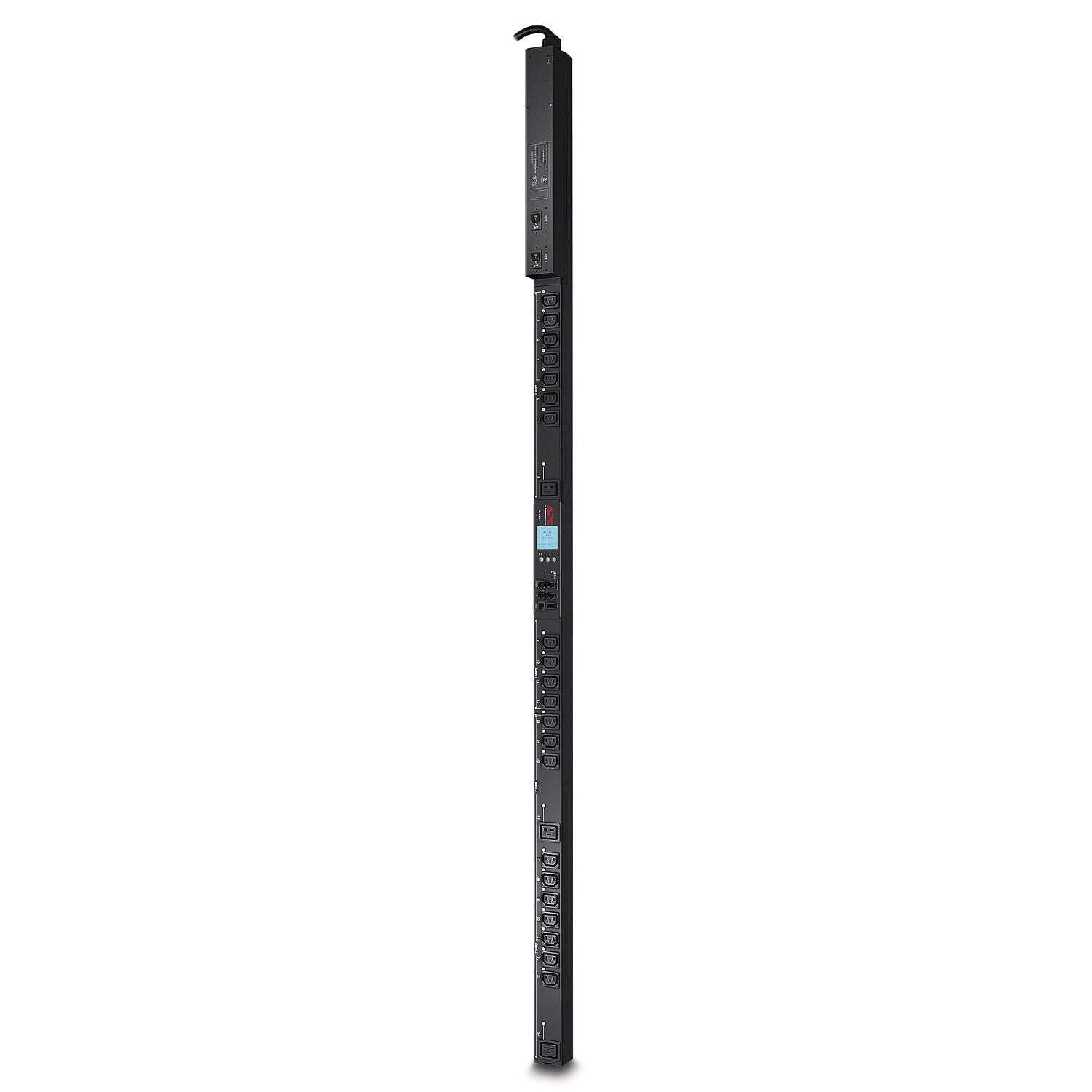

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Design
PDU types
Switched
Rack capacity
0U
Product colour
Black
Ports & interfaces
AC outlets quantity
24 AC outlet(s)

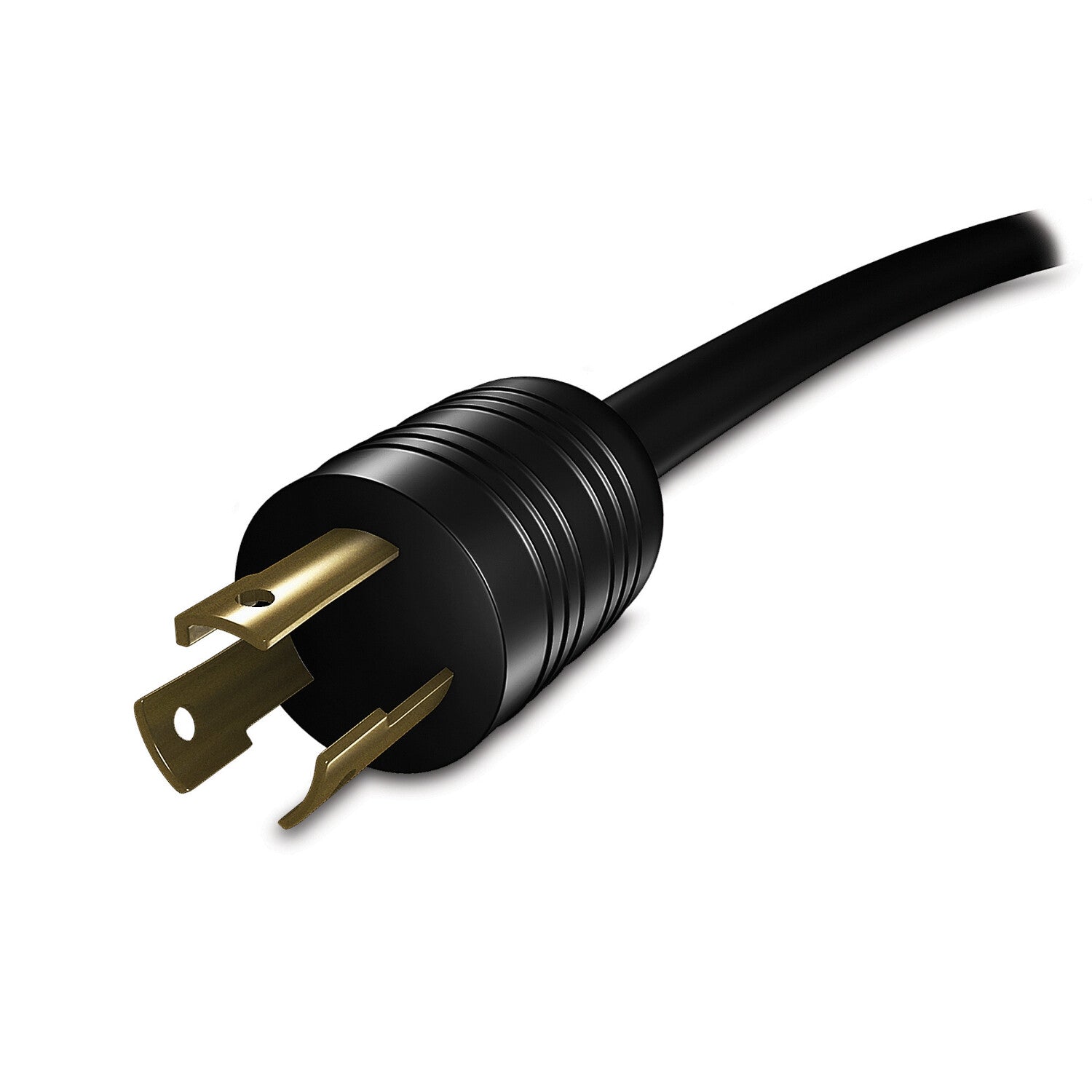

Power plug
NEMA L6-30P
Input connection type
NEMA L6-30P
Features
Cable length
2.9 m
Power
Nominal input voltage
200; 208; 230 V
AC input frequency
50 - 60 Hz
Maximum current
30 A
Nominal output voltage
208 V
Output voltage
200 V; 208 V
Maximum total current draw per phase
30 A
Power protection features
Overload
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
