Minimized downtime disruption with Field-replaceable NMC
Monitor temperature and humidity efficiently
Dual input power cords to enhance uptime for critcal loads
Connect and manage up to 32 Rack ATSs from one IP address
Seamless switching with transfer time 10ms
Supports APC Wi-fi USB device for cableless installation & setup
Gigabit Ethernet support for faster Communication
Remote management via Web UI, CLI, SNMP or EcoStruxure expert
APC NMC3 integrated for enhanced cyber security

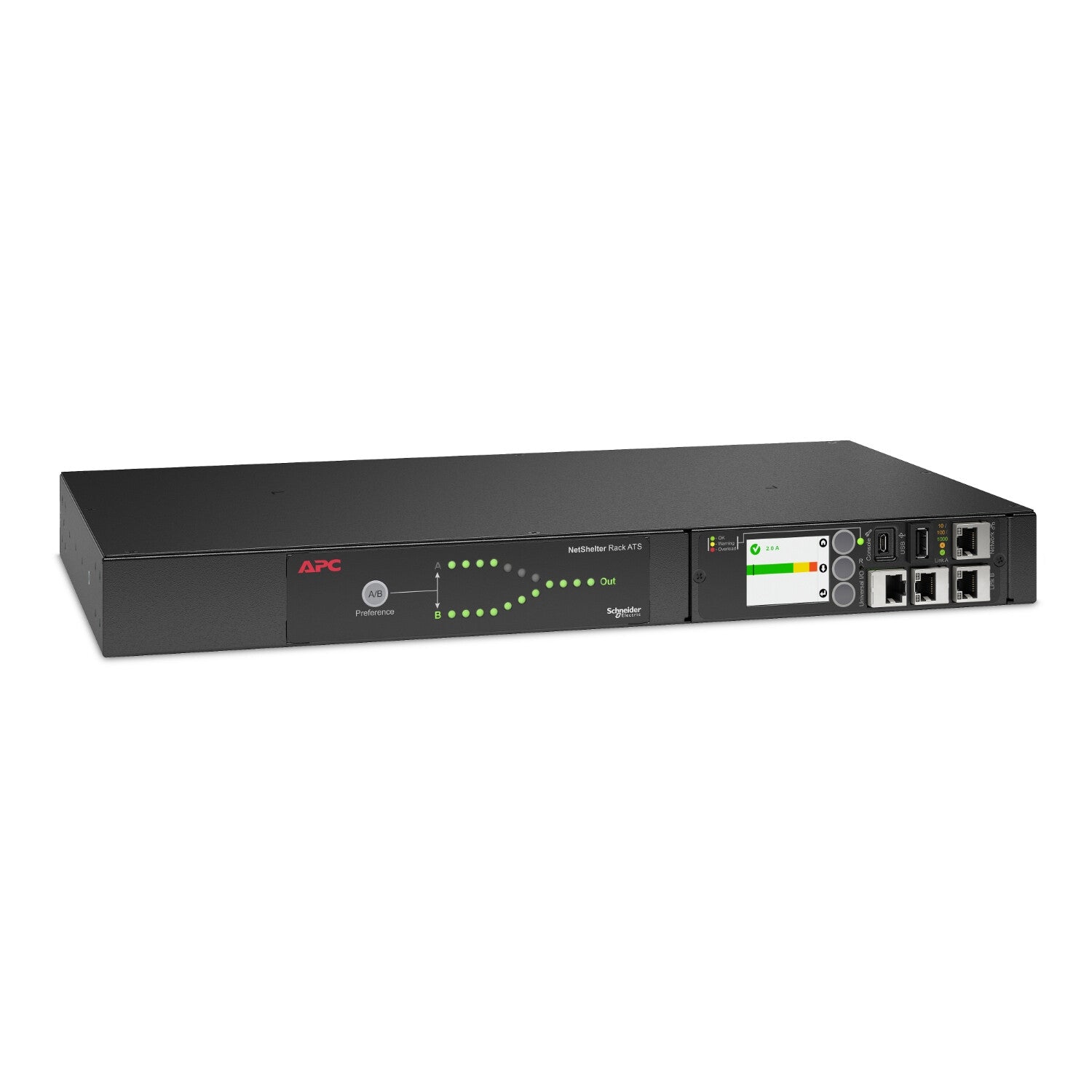

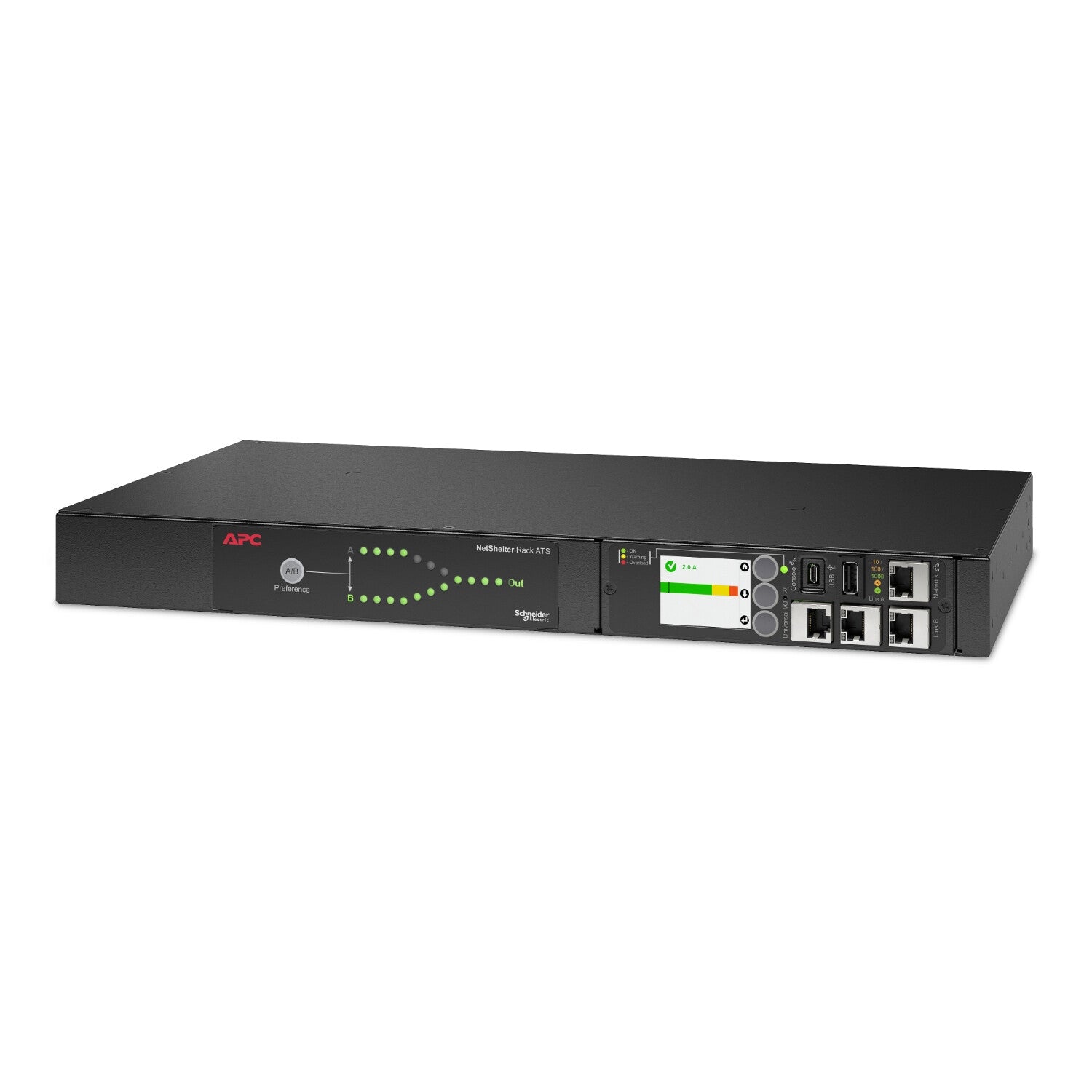

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4452A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4452A is single phase 1U Rack ATS with 20A rated current, 120V rated voltage and 1920VA load capacity. For North America region, the Regulatory Derated Input Current is 16A. It comes with 2 NEMA L5-20P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Power
Input operation voltage (min)
108 V
Input operation voltage (max)
132 V
AC input frequency
50 - 60 Hz
Input current
20 A
Design
Form factor
Rackmount
Rack capacity
1U
Product colour
Black
Certification
EN 55022 class A, FCC part 15 class A
Ports & interfaces
AC inlet type
NEMA L5-20P
AC outlets quantity
10 AC outlet(s)
AC outlet types
NEMA L5-20R
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
