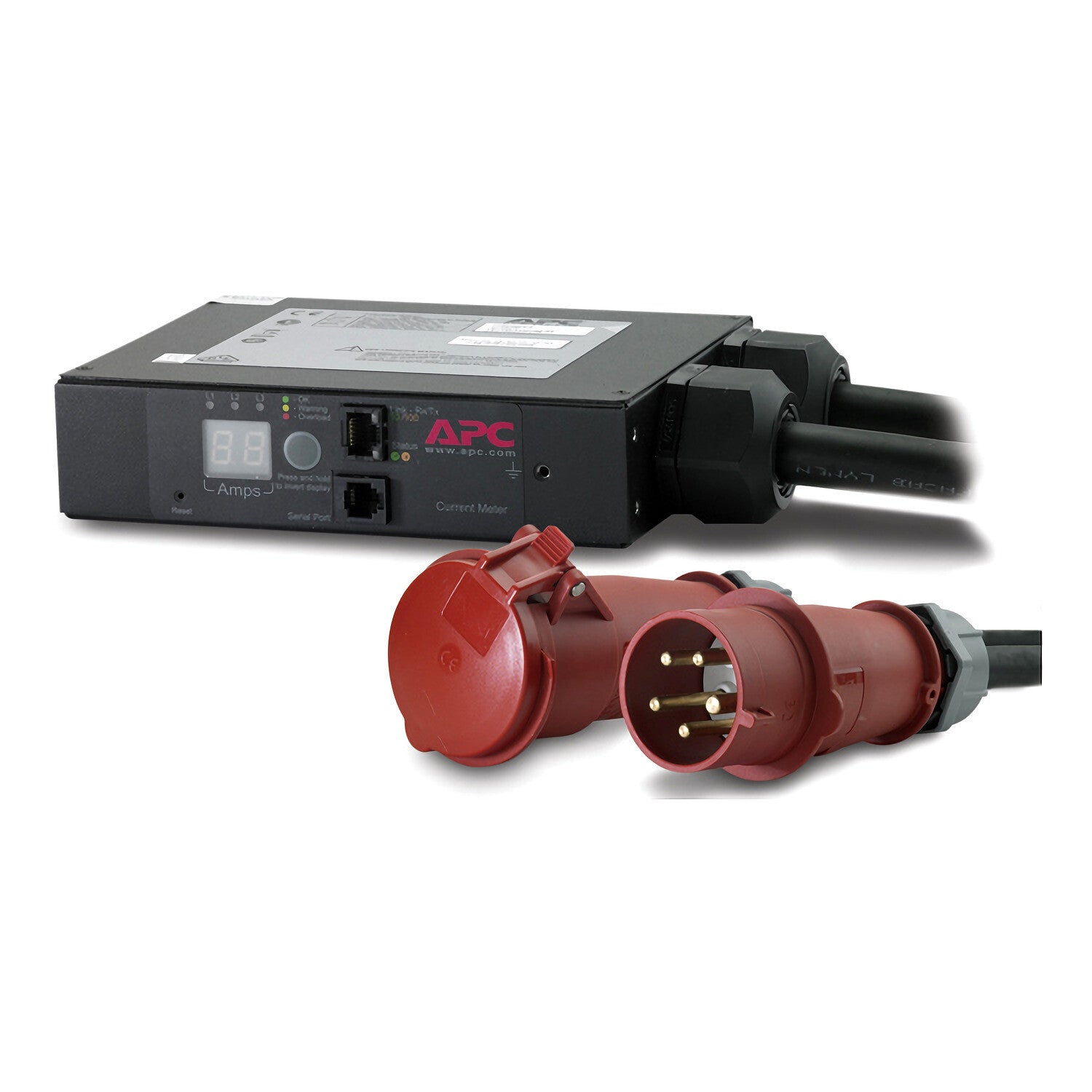

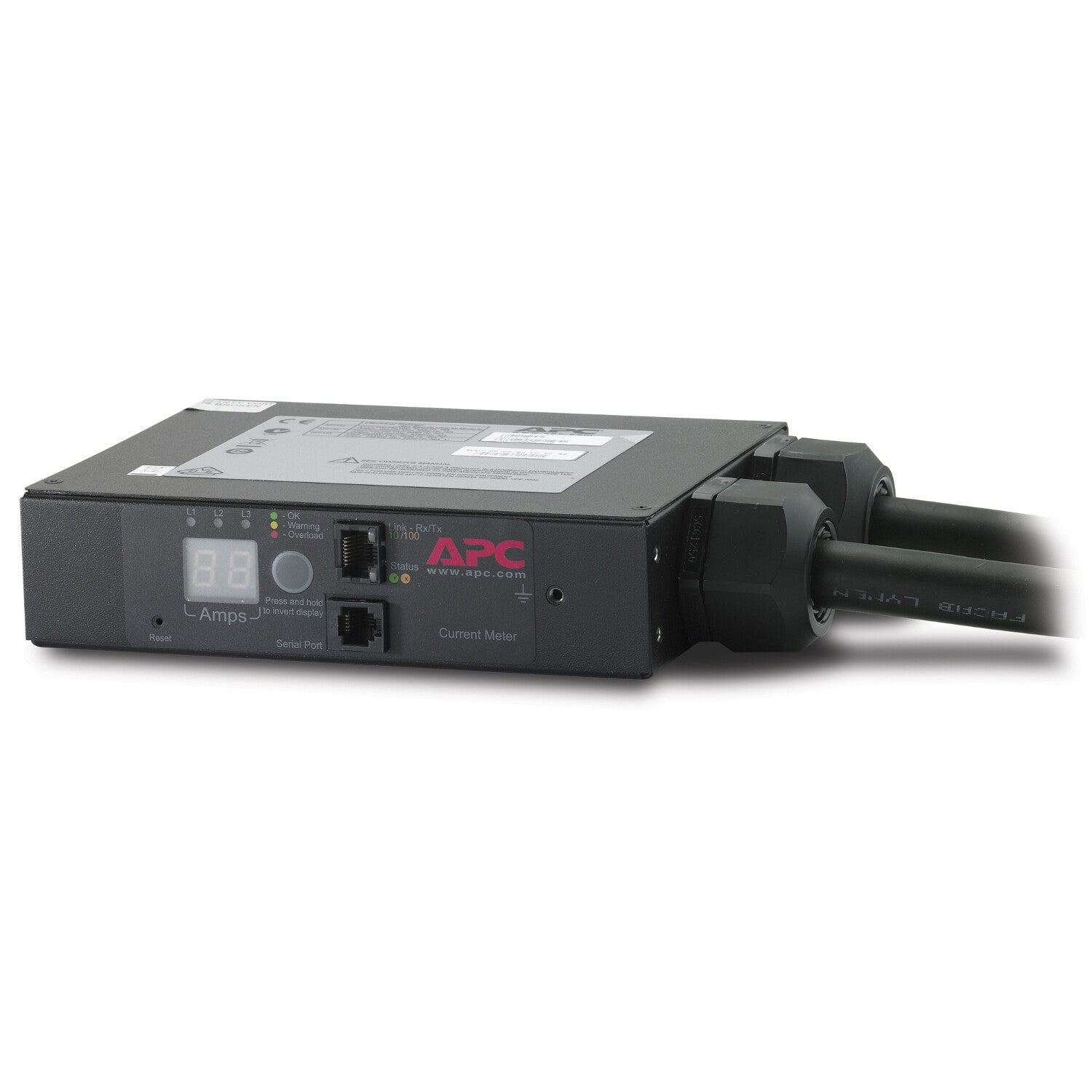

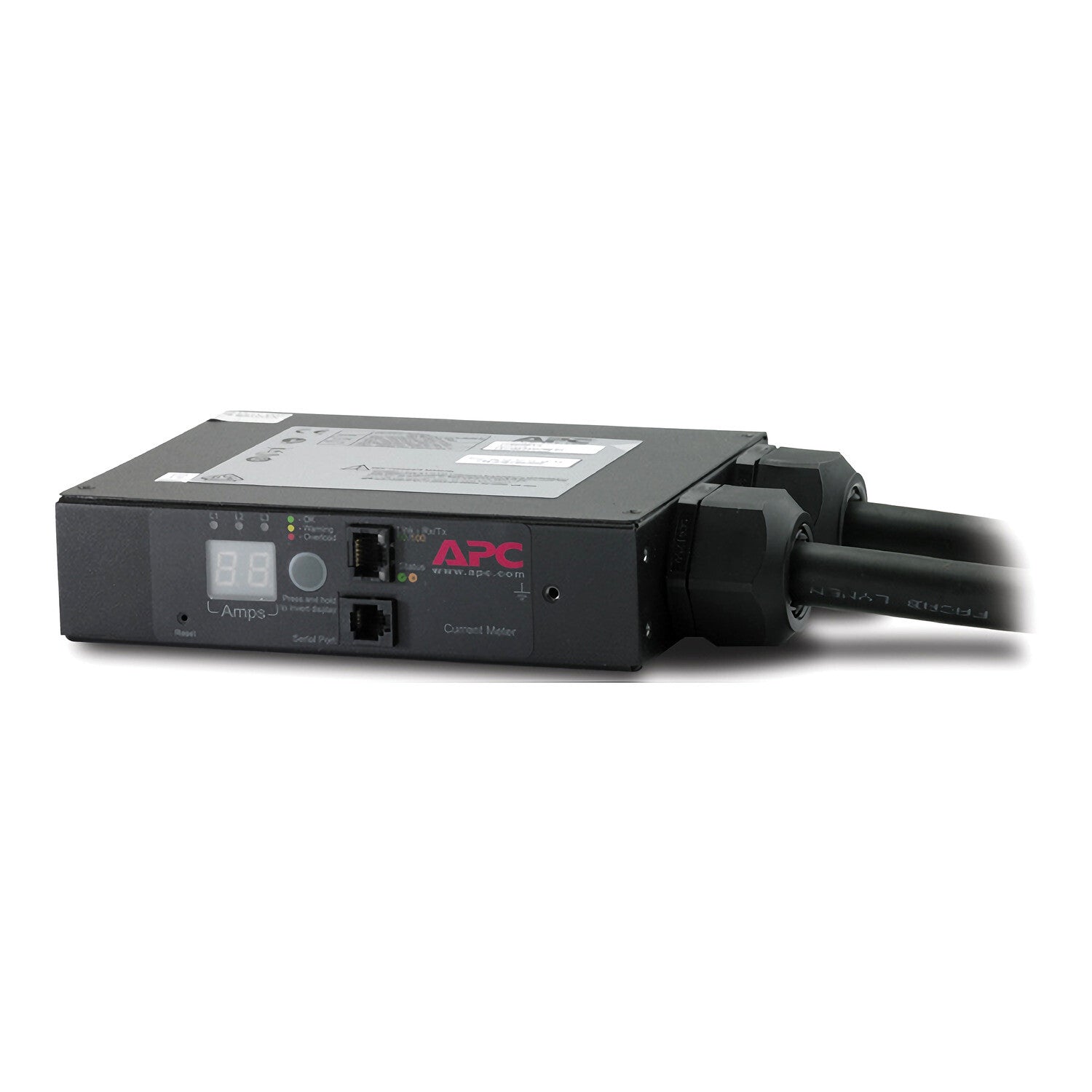

APC In-Line Current Meter, 32A, 230V, IEC309-32A 3-PH, 3P+N+G

APC
€678.99
€678.99
Tax included.
Out of Stock
  • Provides real-time monitoring of current being drawn by connected equipment
  • Ensures precise measurement of current for effective power management
  • Small form factor for easy integration into existing setups
  • Simple setup process with clear instructions

It is an in-line current meter designed to measure and display the current being drawn by connected equipment. It supports a maximum current of 32A and operates at 400V. The meter features a digital display for real-time monitoring and includes an installation guide.

Design
PDU types Metered
Type Three-phase
Rack capacity 0U
Product colour Black
Display LED
Ports & interfaces
AC outlets quantity 1 AC outlet(s)

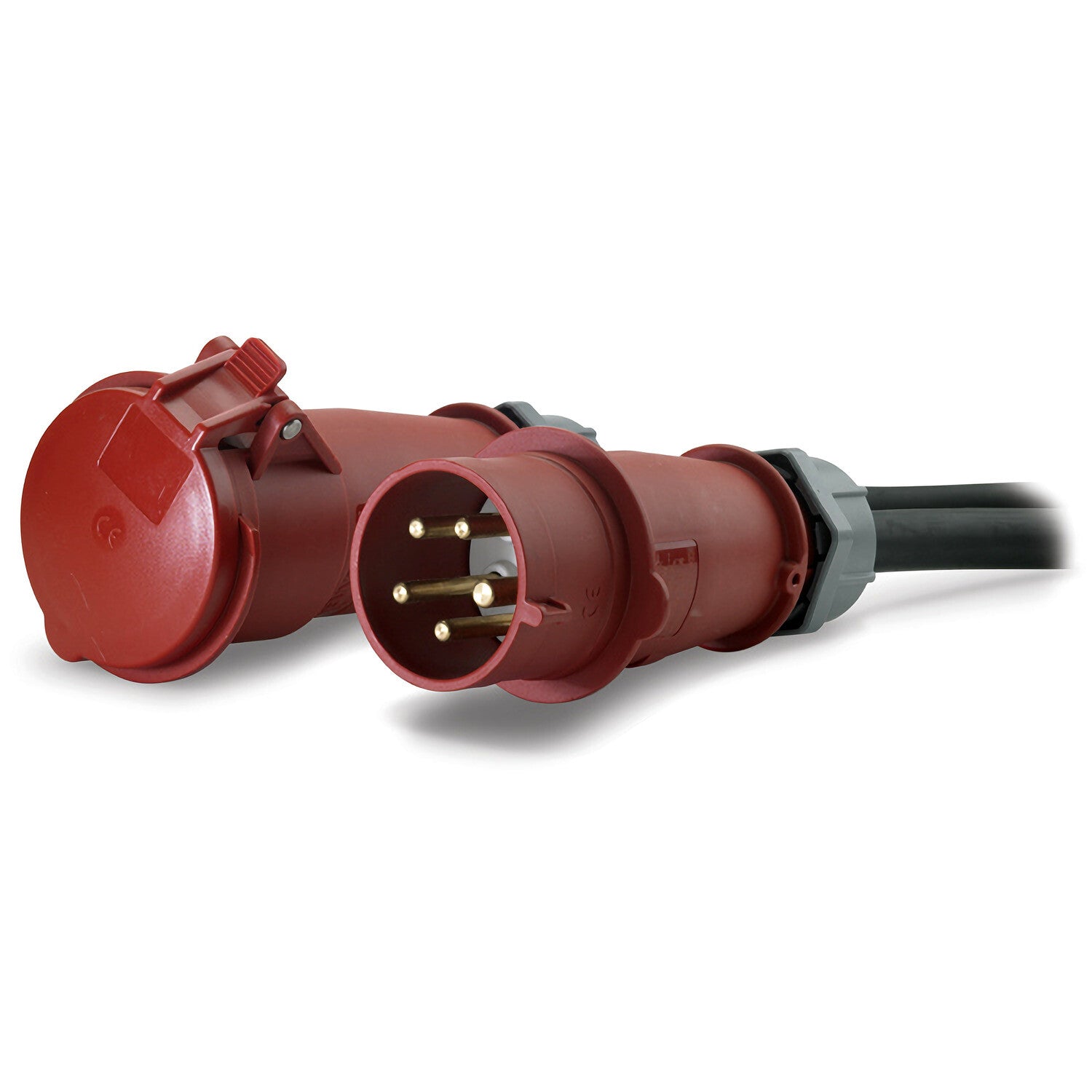

Input connection type IEC 60309 32 A 3P + N + E
Output connections IEC 309 32A 3P+N+E
Features
Cable length 0.9 m
Management features
Monitoring Current
Power
Nominal input voltage 400 3 phases
AC input frequency 50 - 60 Hz
Maximum current 32 A
Nominal output voltage 230 V
Output voltage 230 V
Load capacity 22080 VA
Number of phases 3
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Compliance certificates RoHS, REACH, WEEE
Certification AS/NZS 3548 (C-Tick) class A; C-Tick; CE; GOST; VDE
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Weight & dimensions
Width 178 mm
Depth 140 mm
Height 44 mm
Weight 2.89 kg
Packaging content
Cables included RS-232
Manual Yes
Packaging data
Package weight 3.52 kg
Package width 330 mm
Package depth 185 mm
Package height 246 mm
Technical details
Packaging recycled materials Recycled cardboard
Preferred mounting position no preference
Removable battery Yes
Packaging without single use plastic No
Take-back system No
SCIP number 1cdb2fed-a06f-4574-913d-8df8e70936b2
Sustainable packaging No
Logistics data
Customs product code (TARIC) 9030337000
Country of origin India
Total carbon footprint (kg of CO2e) 2909.2623272707
