- Double-conversion (Online)
- 30 kVA 30000 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 480 V
- Tower White
GVSUPS30KB4HS Features

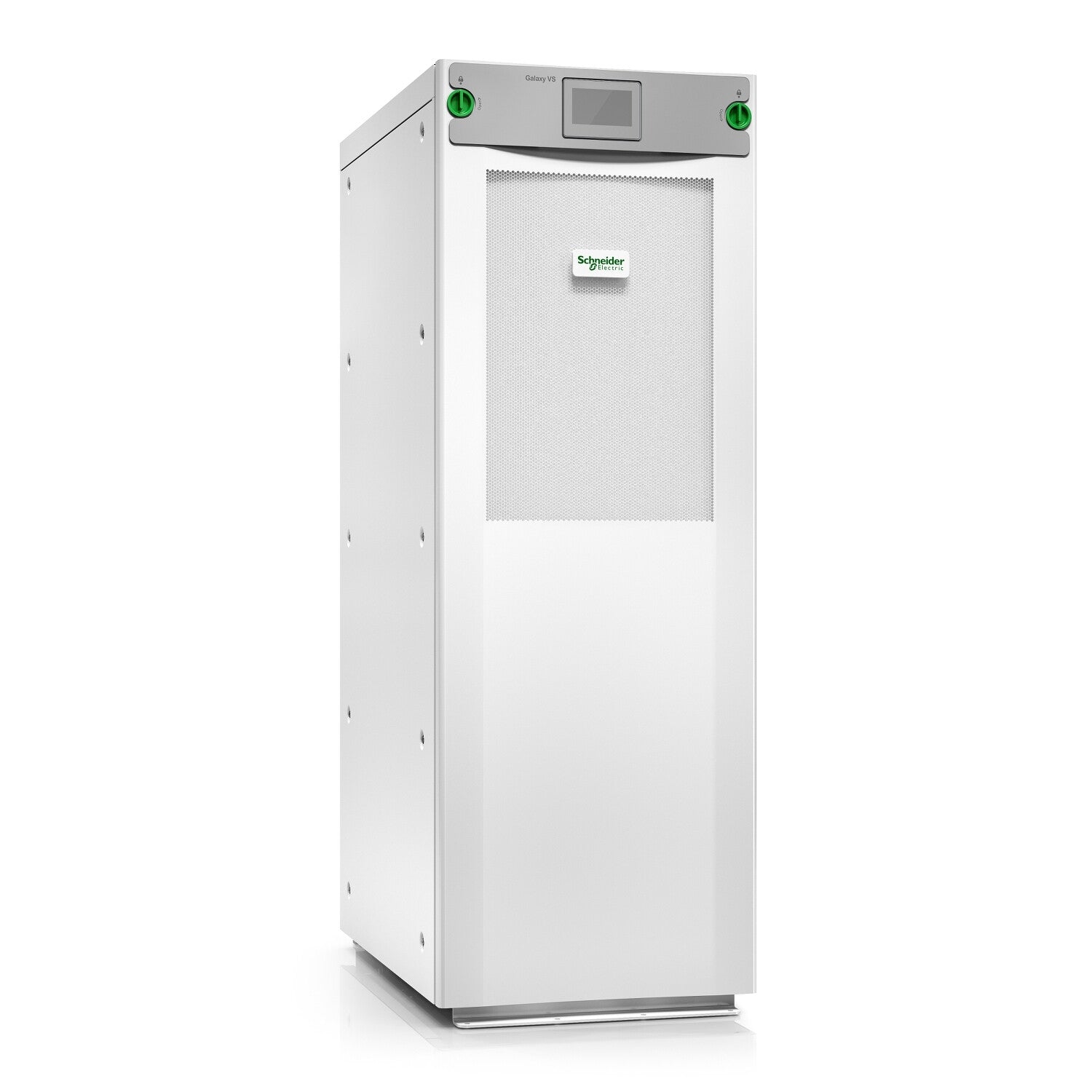

- Galaxy VS UPS 30kW 400V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5x8
- Highly efficient, easy-to-deploy 30kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 2 smart high-capacity modular battery strings, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
30 kVA |
| Output power |
30000 W |
| Waveform |
Sine |
| Input operation voltage (min) |
340 V |
| Input operation voltage (max) |
460 V |
| Input frequency |
40/70 Hz |
| Output operation voltage (min) |
380 V |
| Output operation voltage (max) |
415 V |
| Output frequency |
50/60 Hz |
| Maximum current |
54 A |
| Number of input phases |
3 |
| Number of output phases |
3 |
| Input power factor |
0.99 |
| Crest factor |
2.5:1 |
| ECO mode |
Yes |
| Input current Total Harmonic Distortion (THD) |
3% |
| Noise level |
61 dB |
| Power protection features |
Overload, Short circuit |
| Audible alarm(s) |
Yes |
| Ports & interfaces |
|---|
| AC outlet types |
Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) |
| SmartSlot |
Yes |
| SmartConnect port |
No |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery voltage |
480 V |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
White |
| Display type |
LCD |
| International Protection (IP) code |
IP20 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 1000 m |
| Non-operating altitude |
0 - 3000 m |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Certificates |
|---|
| Certification |
CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Weight & dimensions |
|---|
| Width |
521 mm |
| Depth |
847 mm |
| Height |
1485 mm |
| Weight |
460 kg |
| Packaging data |
|---|
| Management card included |
Yes |
| Package width |
640 mm |
| Package depth |
990 mm |
| Package height |
1680 mm |
| Package weight |
490 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
