6kVA/6kW double-conversion on-line pure sine wave 5U rackmount UPS
Rack/Tower convertible (rail kit included)
Add up to 3 external battery packs (SRVL48RMBP3U) for extended runtime
Lithium-ion battery minimizes the need to replace battery during UPS lifetime
Graceful shutdown of servers and workstations
Optional Network Management Card AP9544 supports network-based monitoring and management of Easy UPS Online Lithium-ion.
Emergency Power Off (EPO) funtion can remote UPS shutoff in the event of a fire or other emergency.

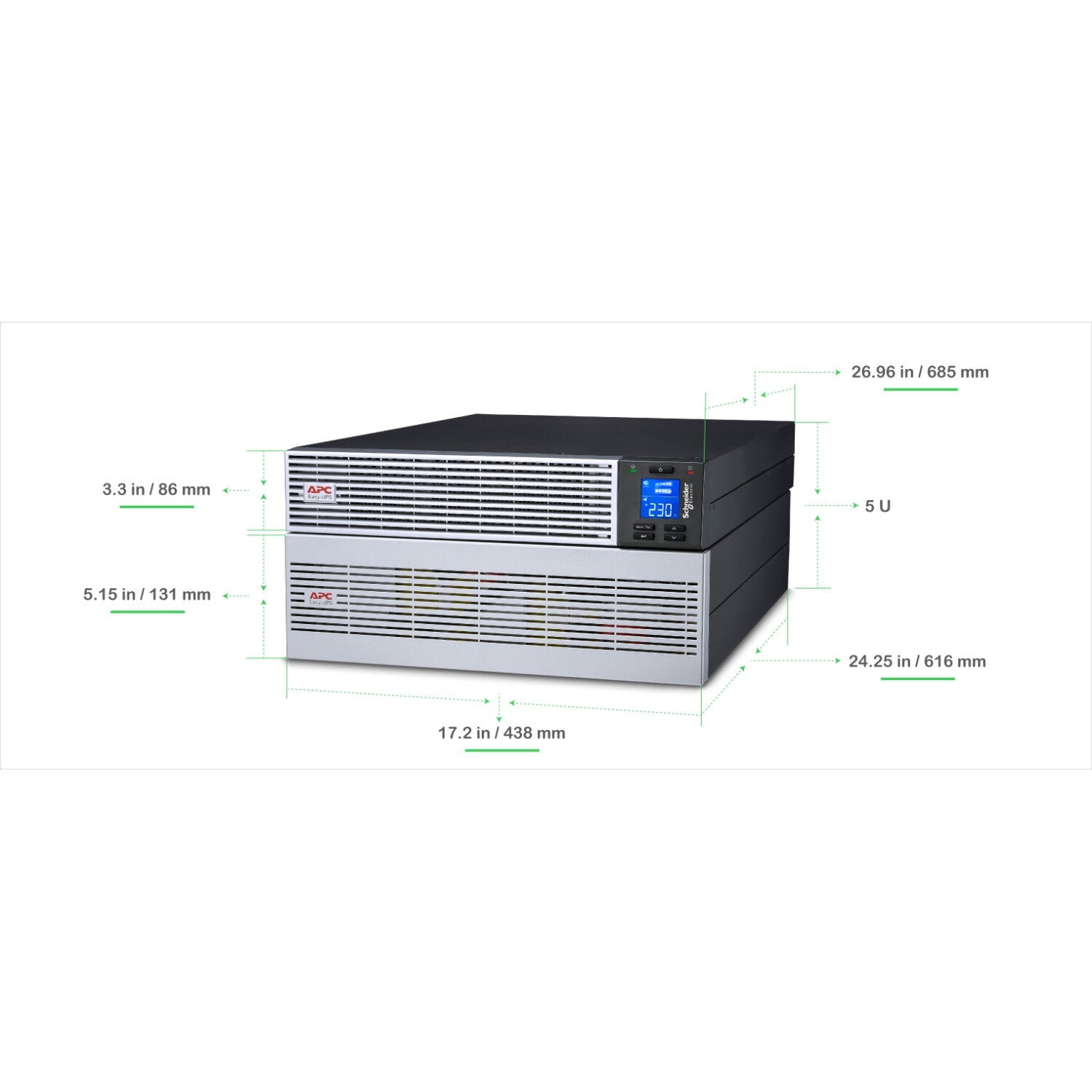

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 6000VA Extendeded runtime model with rail kit Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 93.5% efficiency in on-line double conversion mode and up to 97% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 686.4mm (depth) x 133mm (height) 5U in total which includes 2U Power module and 3U external battery pack. The net weighs is 69.7kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Micro Data Center and Server room, Industrial Automation , Equipment Manufacturing. CB, CE, UN38.3 External Battery Pack, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.
Features
UPS topology
Double-conversion (Online)
Output power capacity
6 kVA
Output power
6000 W
Waveform
Sine
Input operation voltage (min)
120 V
Input operation voltage (max)
300 V
Input frequency
40/70 Hz
Output operation voltage (min)
230 V
Output frequency
50/60 Hz
Surge energy rating
600 J
Number of input phases
1
Number of output phases
1
Single-phase input voltage supported
230 V
Efficiency
93.5%
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Noise level
57.3 dB
Audible alarm modes
Alarm when on battery, Overload alarm
Ports & interfaces
USB port
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery voltage
48 V
Battery life (max)
10 year(s)
Battery recharge time
5 h
Design
Form factor
Rackmount/Tower
Product colour
Black, Silver
Rack capacity
5U
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
SCIP number
780cb2d6-f852-4c3c-987f-e705629194ca
Packaging without single use plastic
No
Take-back system
No
Sustainable packaging
No
Packaging content
Cables included
Phone (RJ-11), RJ-45, RS-232, USB cable
Manual
Yes
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
