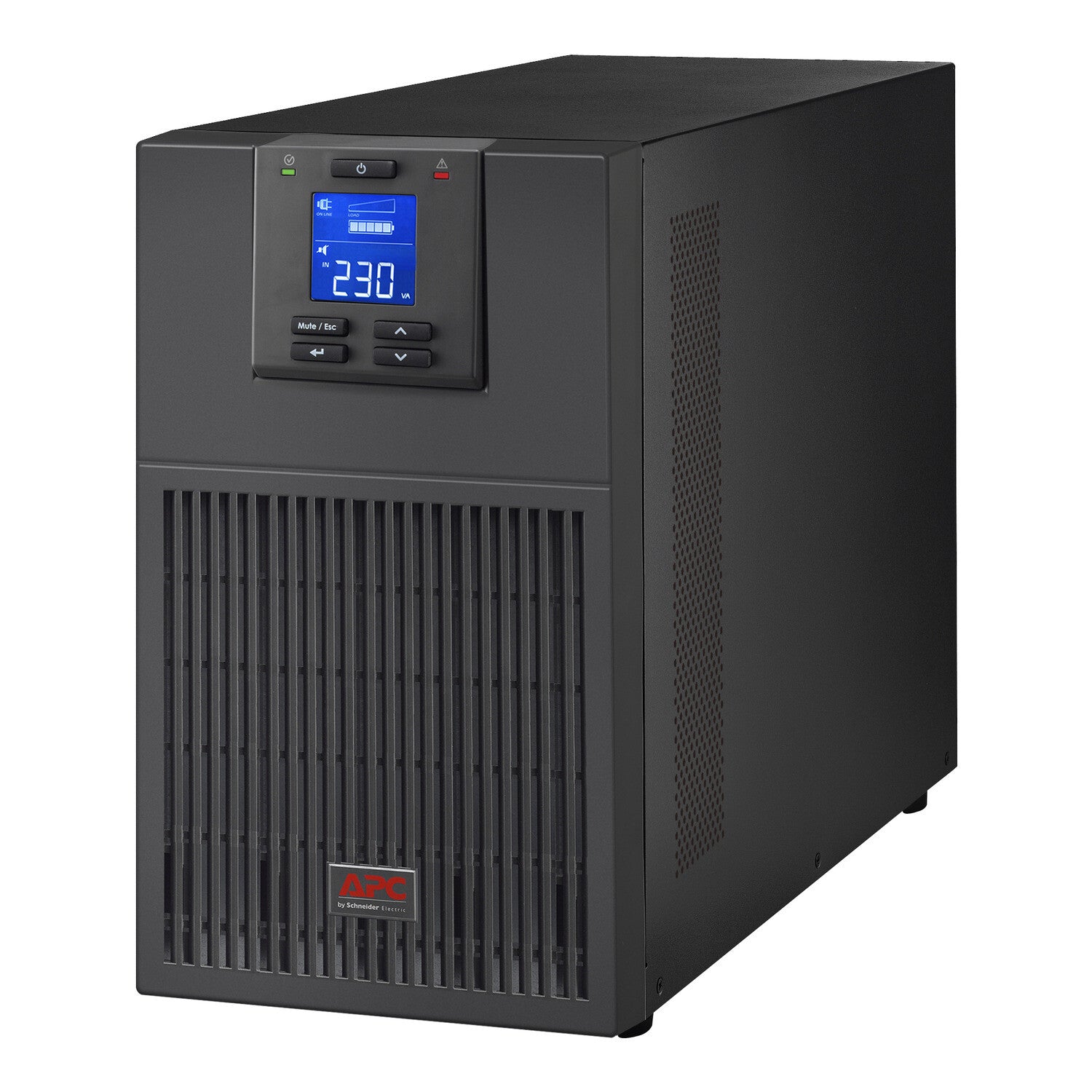

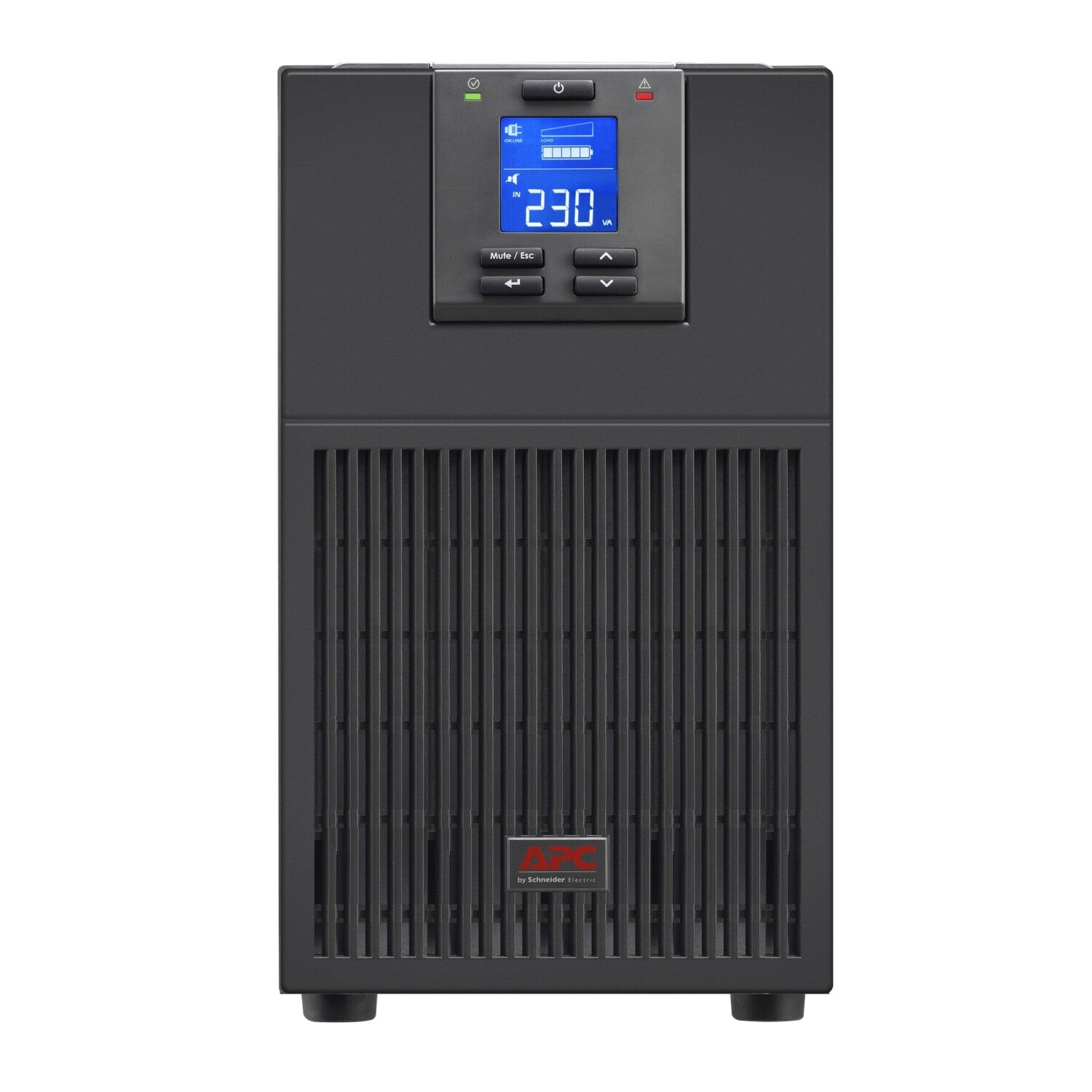

10kVA/10kW double-conversion on-line pure sine wave tower UPS
High operating efficiency in energy-saving ECO mode
Add up to 4 external battery packs (SRV240BP-9A) for extended runtime
Easy-to-read LCD interface for detailed and accurate information on UPS status

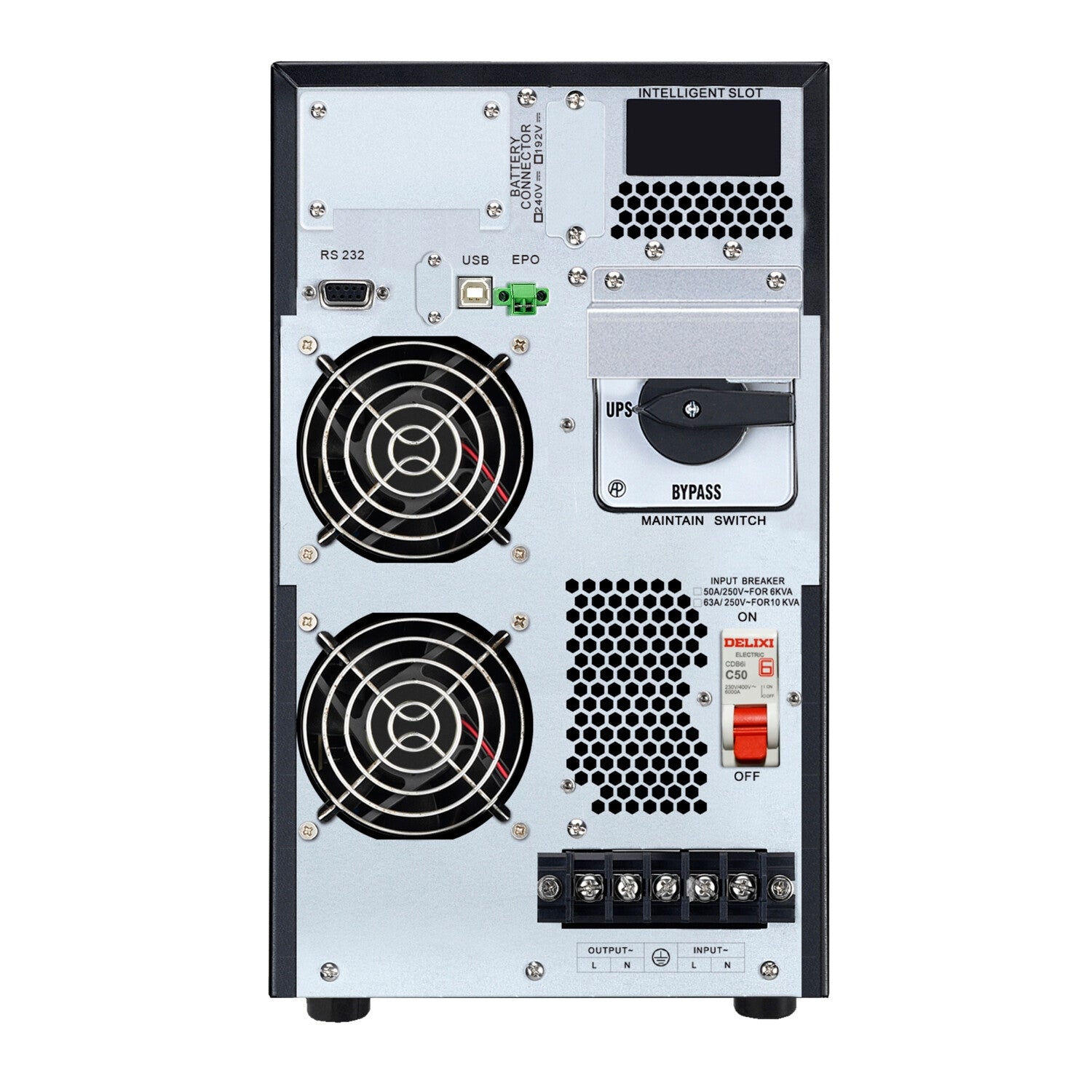

"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 10kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions." "The SRV comes with hard wire 3-wire(1P+N+E) input and 1x hard wire 3-wire(1P+N+E) outlet." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The Easy UPS has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."
Features
UPS topology
Double-conversion (Online)
Output power capacity
10 kVA
Output power
10000 W
Waveform
Sine
Input operation voltage (min)
220 V
Input operation voltage (max)
240 V
Input frequency
40/70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Output voltage regulation
1%
Surge energy rating
600 J
Number of input phases
1
Number of output phases
1
Single-phase input voltage supported
230 V
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Surge protection
Yes
Ports & interfaces
USB port
Yes
USB port type
USB Type-B
USB 2.0 ports quantity
1
Serial interface
Yes
Serial interface type
RS-232
RS-232 ports
1
Serial ports quantity
1
Design
Form factor
Tower
Product colour
Black
Cooling type
Active
Built-in fan
Yes
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 14763.6 m
Technical details
Preferred mounting position
no preference
Packaging recycled materials
Recycled cardboard
Packaging without single use plastic
No
Take-back system
No
Sustainable packaging
No
Packaging content
Cables included
USB cable
Manual
Yes
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
