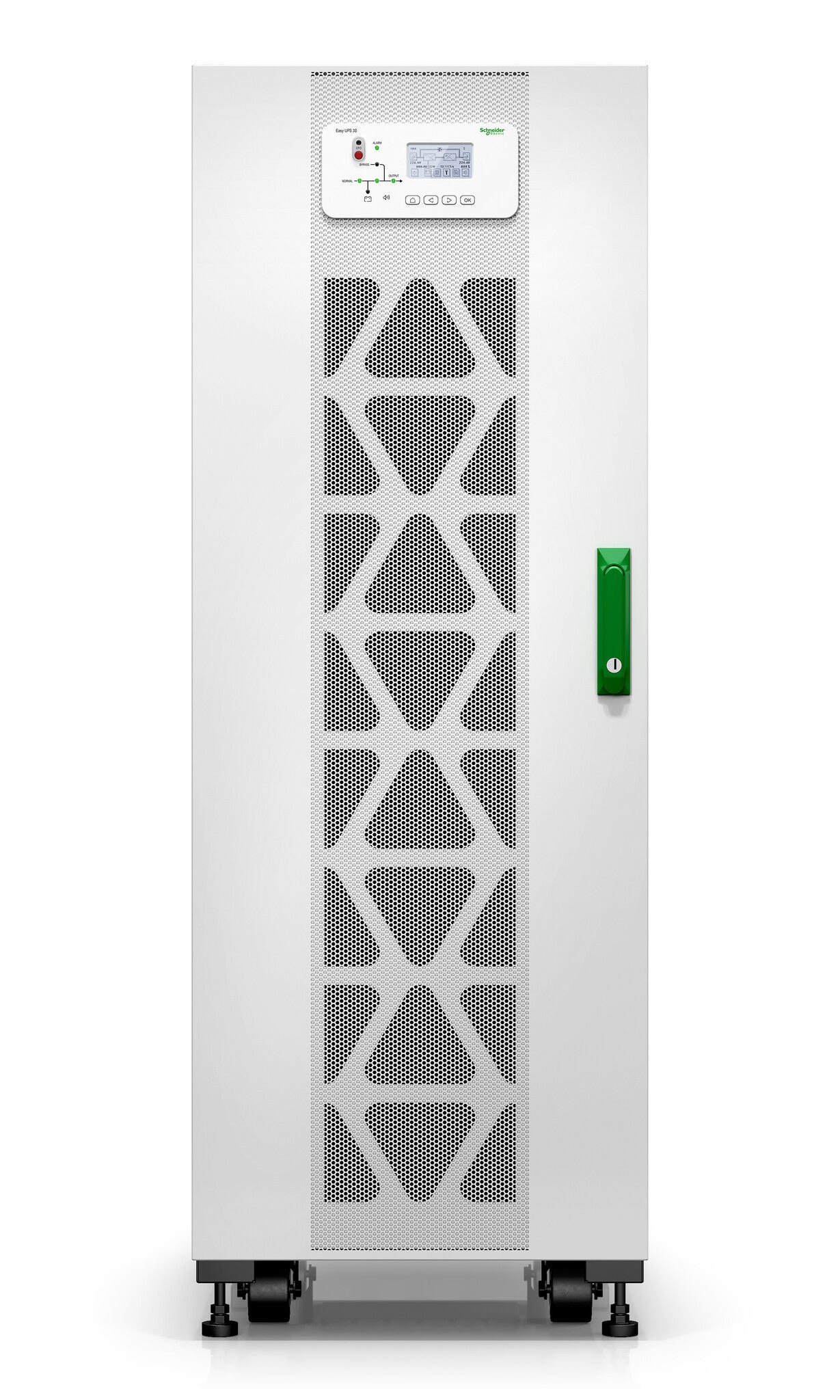

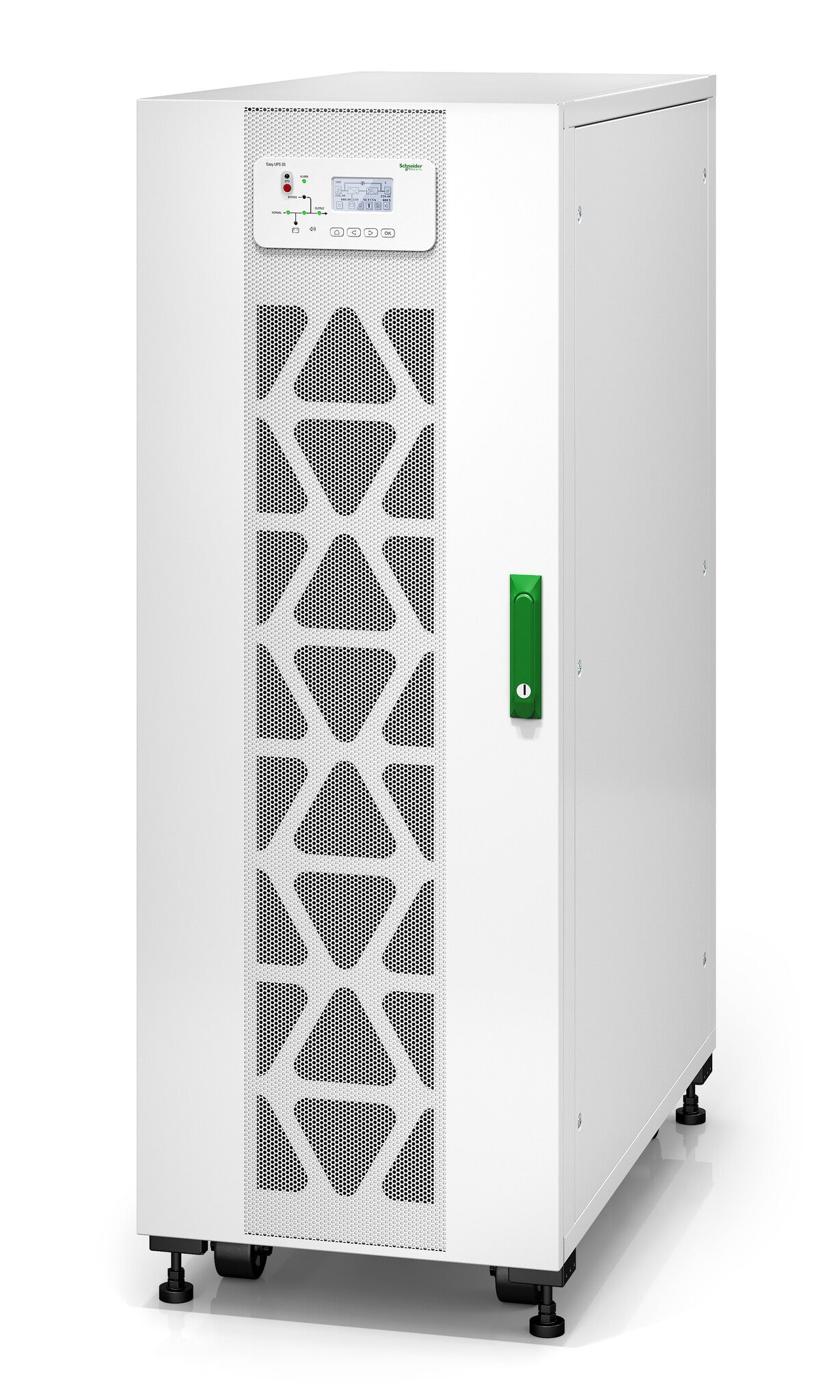

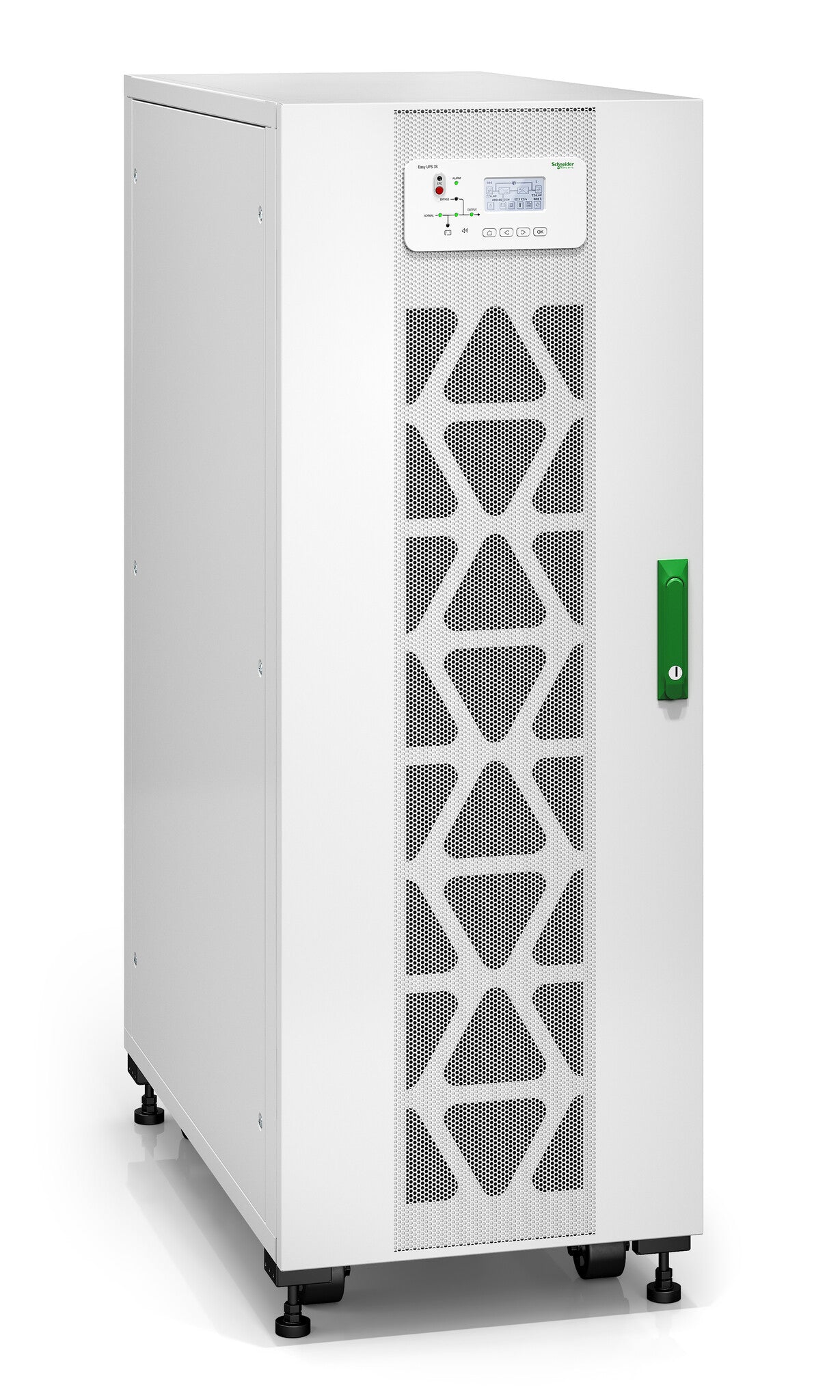

APC Easy UPS 3S uninterruptible power supply (UPS) Double-conversion (Online) 40 kVA 40000 W

APC
€12,126.99
€12,126.99
Tax included.
Out of Stock
  • Double-conversion (Online)
  • 40 kVA 40000 W
  • Waveform: Pure sine
  • Sealed Lead Acid (VRLA) 240 V
  • Tower White
Features
UPS topology Double-conversion (Online)
Output power capacity 40 kVA
Output power 40000 W
Waveform Pure sine
Input operation voltage (min) 304 V
Input operation voltage (max) 477 V
Input frequency 50/60 Hz
Output operation voltage (min) 380 V
Output operation voltage (max) 400 V
Output frequency regulation 45 - 65 Hz
Maximum current 73 A
Number of input phases 3
Number of output phases 3
Efficiency 96%
Emergency Power Off (EPO) Yes
Output voltage Total Harmonic Distortion (THD) 3%
Noise level 63 dB
Ports & interfaces
AC outlet types Hardwire, Terminal
USB port Yes
Serial interface Yes
Serial interface type RS-232
SmartSlot Yes
SmartConnect port No

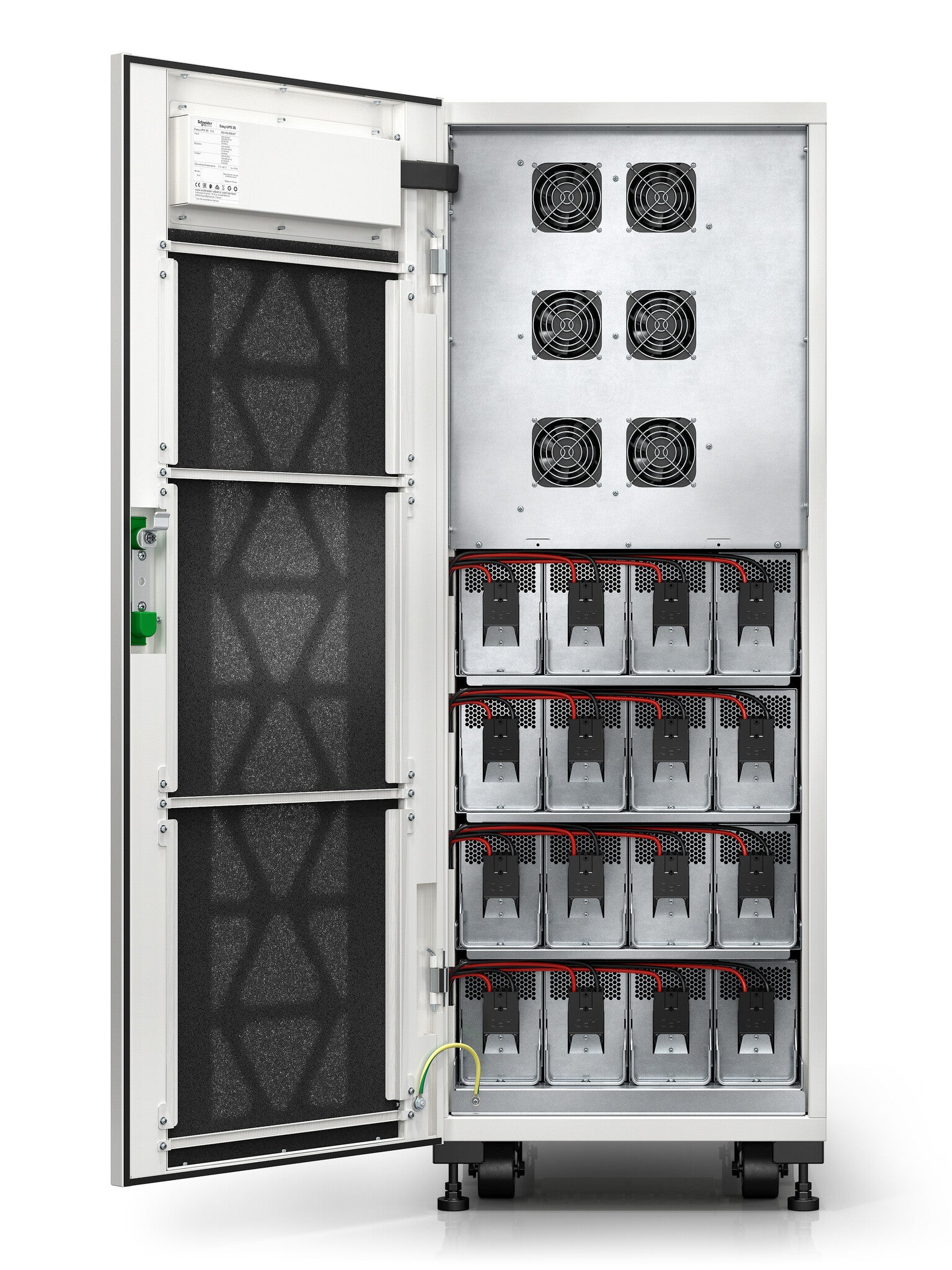

Battery
Battery technology Sealed Lead Acid (VRLA)
Battery voltage 240 V

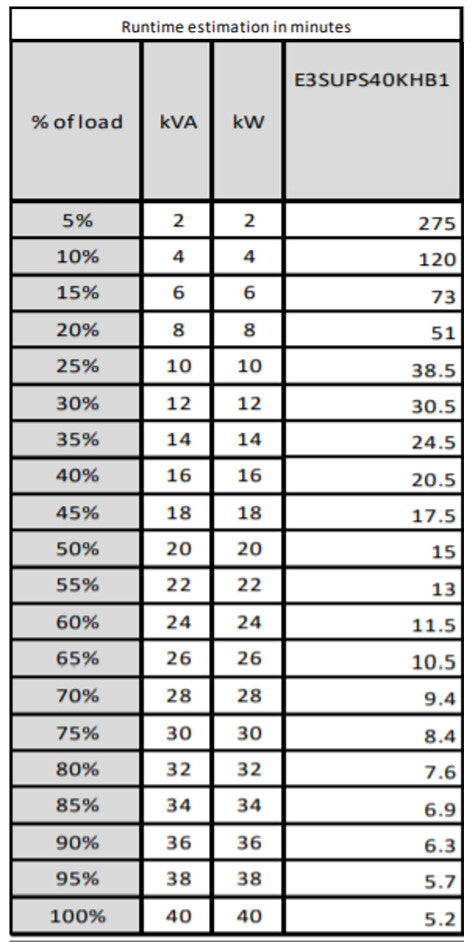

Typical backup time at full load 10 min
Design
Form factor Tower
Product colour White
Display type LCD
International Protection (IP) code IP20
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 40 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 9999 m
Non-operating altitude 0 - 15000 m
Safety regulation & standards
Safety IEC 62040-1-1
Certificates
Compliance certificates RoHS
Certification CE, EAC, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Weight & dimensions
Width 500 mm
Depth 969 mm
Height 1400 mm
Weight 590 kg
Packaging data
Management card included No
Package width 683 mm
Package depth 1114 mm
Package height 1640 mm
Package weight 643 kg
Logistics data
Harmonized System (HS) code 85078000
