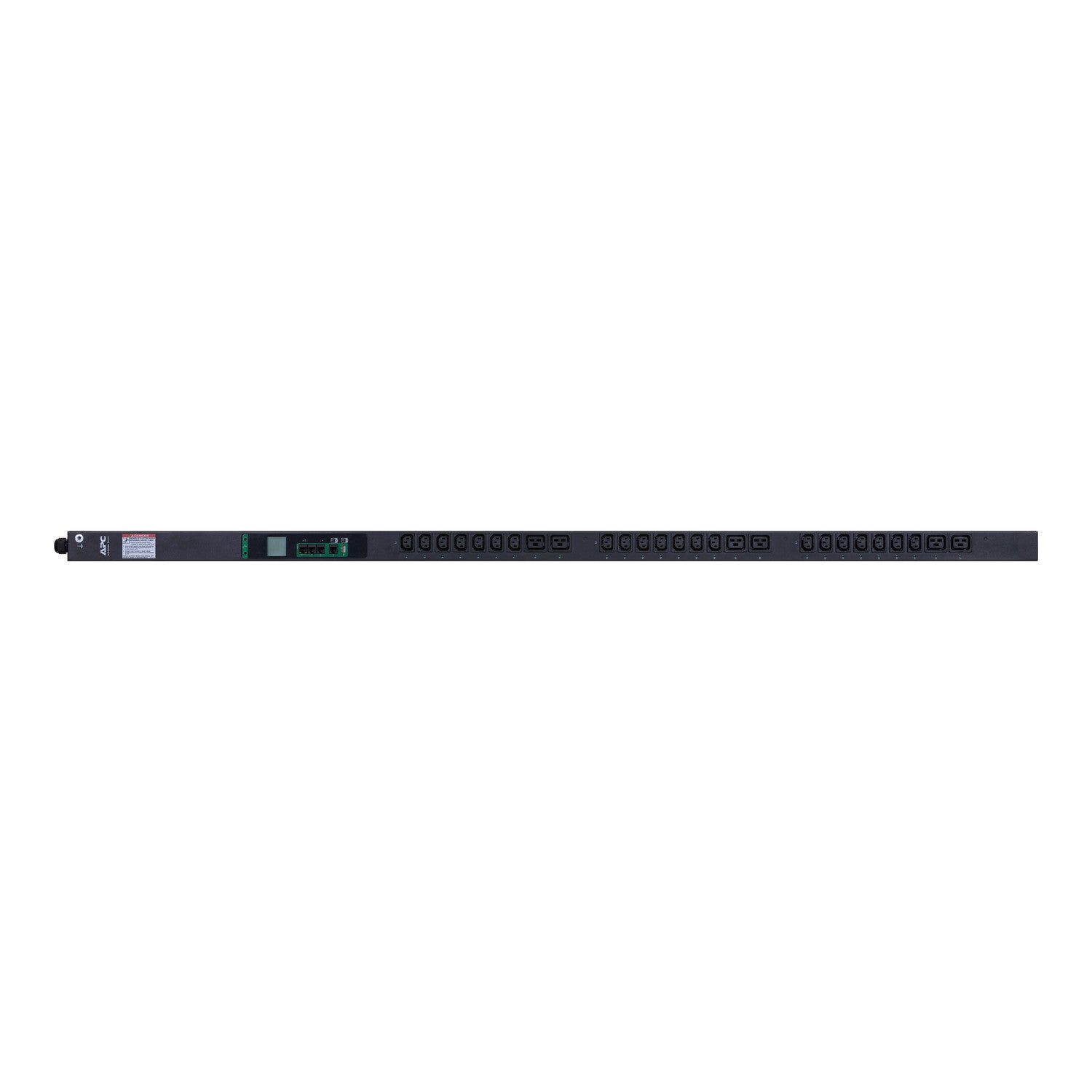

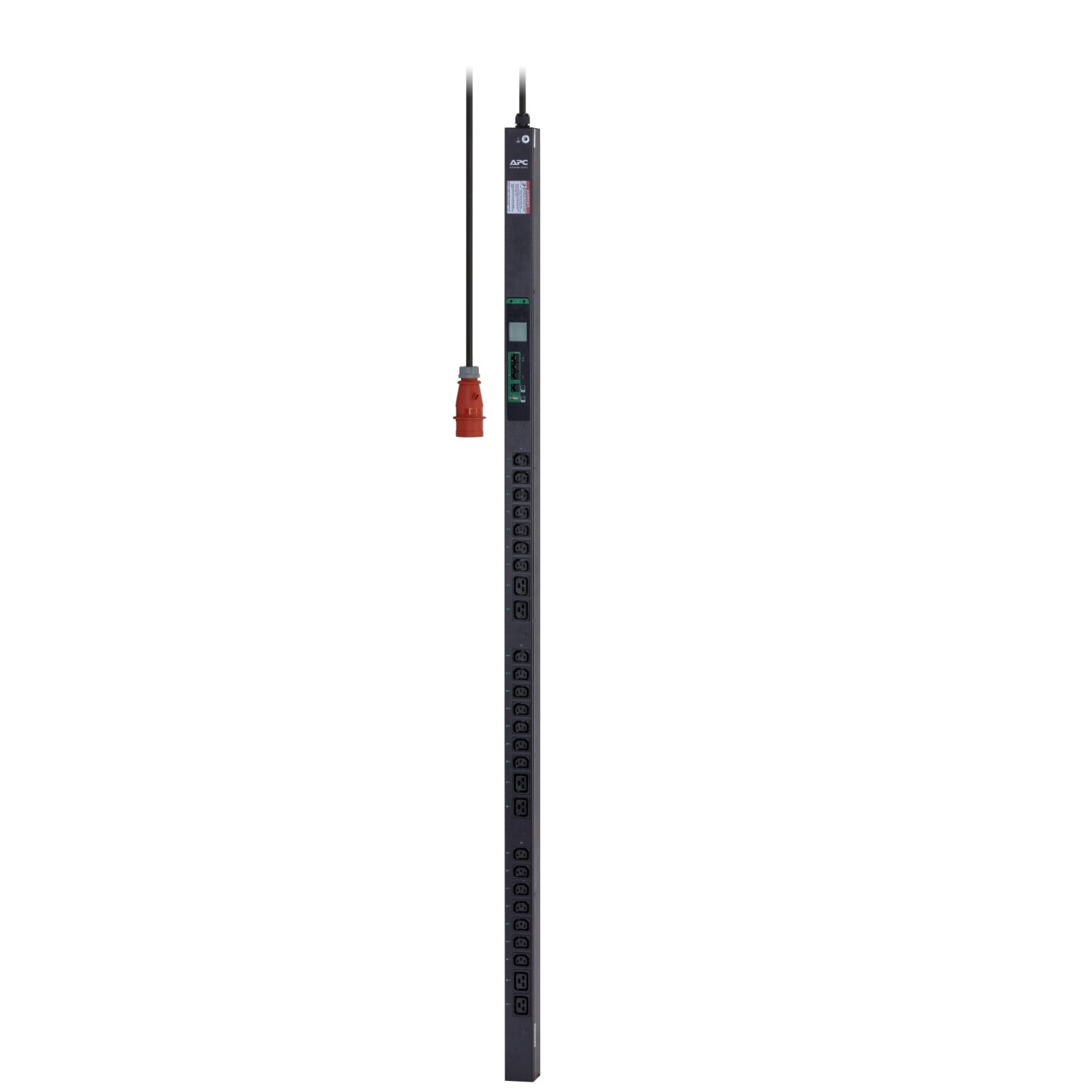

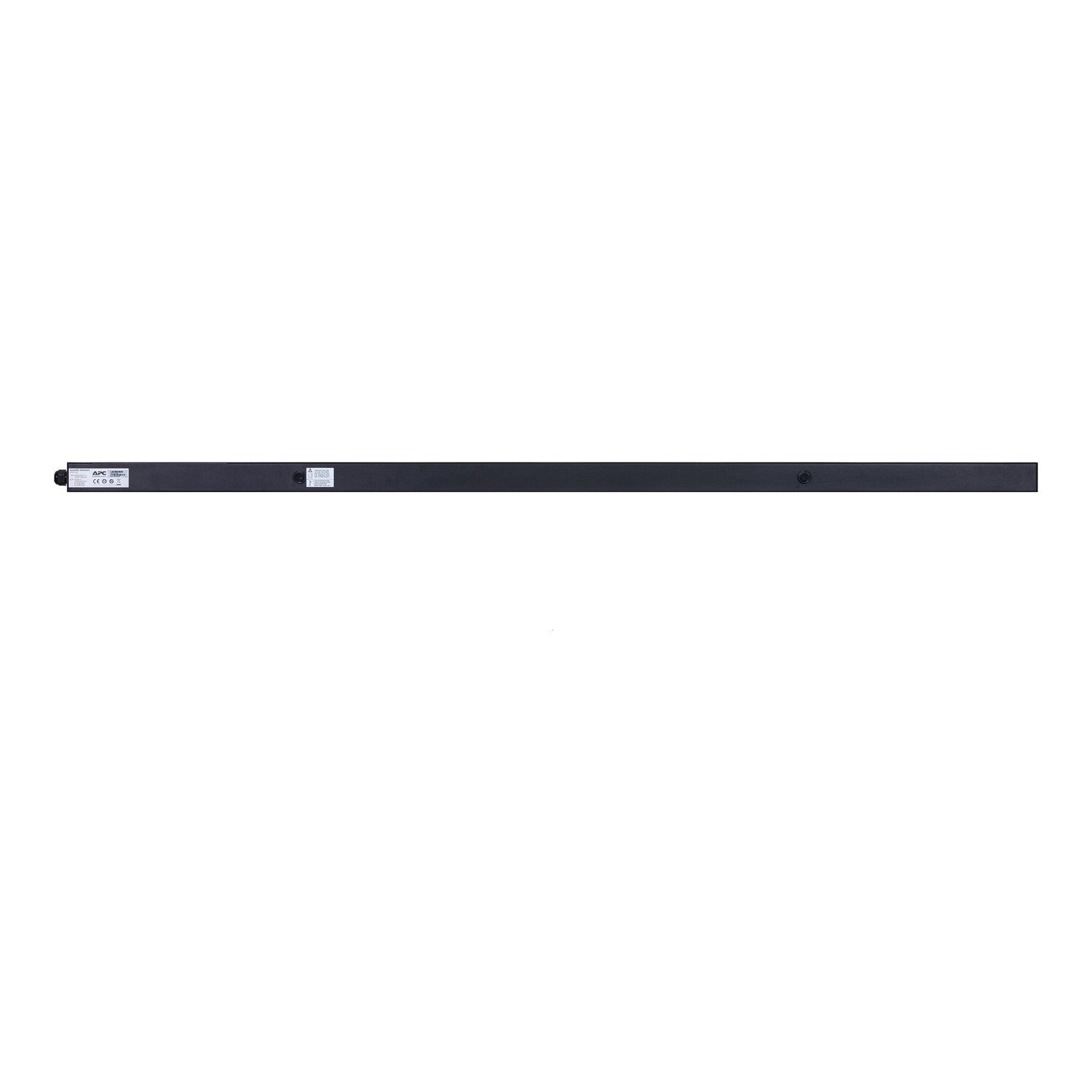

APC Easy Rack PDU, Switched, 0U, 3 Phase, 11kW, 230V, 16A, 21 C13 and 6 C19 outlets, IEC60309 3P + N + PE inlet

APC
€1,234.99
€1,234.99
Tax included.
Out of Stock
  • Three-phase Switched 0U Black
  • 27 AC outlet(s) C13 coupler, C19 coupler
  • 11000 W

Easy Switched Rack Power Distribution Units (Rack PDU) provide on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip.

Design
PDU types Switched
Type Three-phase
Rack capacity 0U
Mounting Vertical
Housing material Aluminium
Product colour Black
Ports & interfaces
AC outlets quantity 27 AC outlet(s)
Power plug IEC 60309
AC outlet types C13 coupler, C19 coupler
Input connection type IEC 60309 16 A 3P + N + PE
Features
Daisy chain Yes
Cable length 2 m
Power
Nominal input voltage 400 3 phases
AC input frequency 50 - 60 Hz
Maximum current 16 A
Output voltage 230 V
Number of phases 3
Maximum power 11000 W
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Compliance certificates RoHS, REACH, WEEE
Certification CE; EAC; RCM; TÜV
Sustainability
Sustainability compliance Yes
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Weight & dimensions
Width 55 mm
Depth 62 mm
Height 1794 mm
Weight 6.2 kg
Packaging data
Package weight 7.78 kg
Package width 160 mm
Package depth 110 mm
Package height 1950 mm
Technical details
Preferred mounting position no preference
Packaging without single use plastic No
Take-back system No
Sustainable packaging No
Logistics data
Customs product code (TARIC) 8537109899
Country of origin China
Total carbon footprint (kg of CO2e) 845.6987954423
