Compact size acommodates installation in a variety of environments
Data line protection ensures complete protection of your equipment from surges
LED Indicator provides easy-to-read status of unit and utility power conditions
Audible alarms provide notification of changing utility power and UPS power conditions
Restore power backup capacity with user-replaceable battery (RBC46 sold separately)
Compatible with PowerChute Serial Shutdown software for remote monitoring and management.

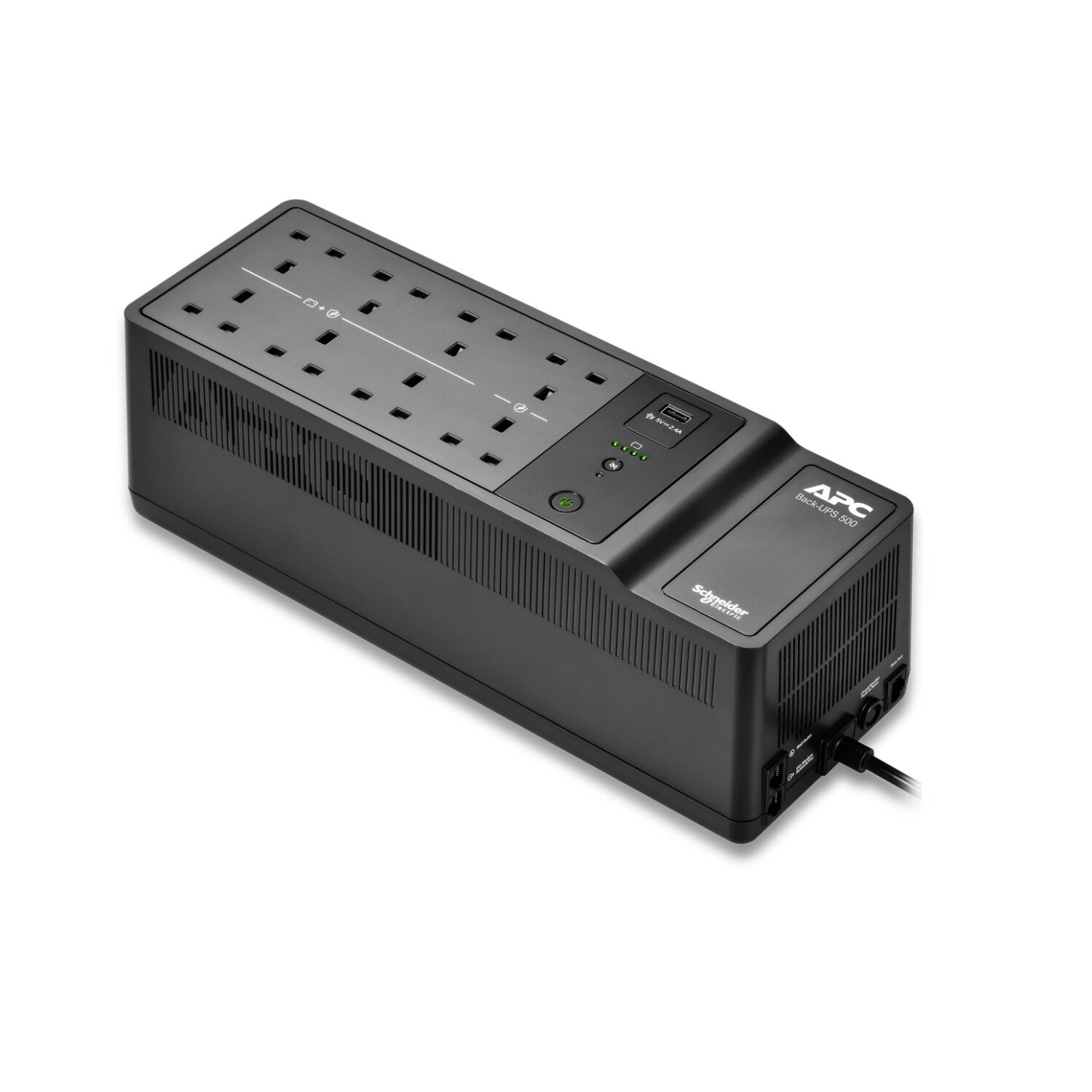

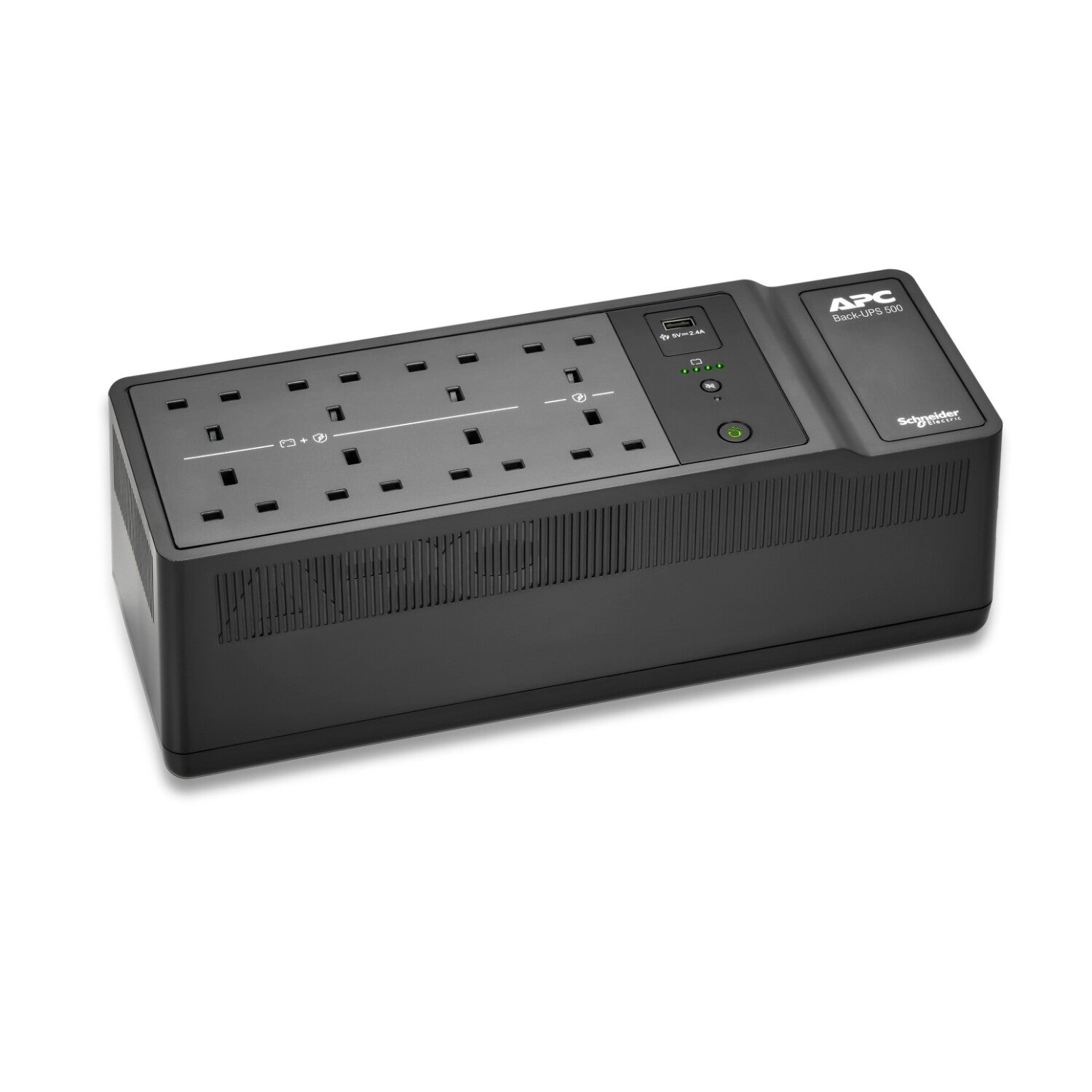

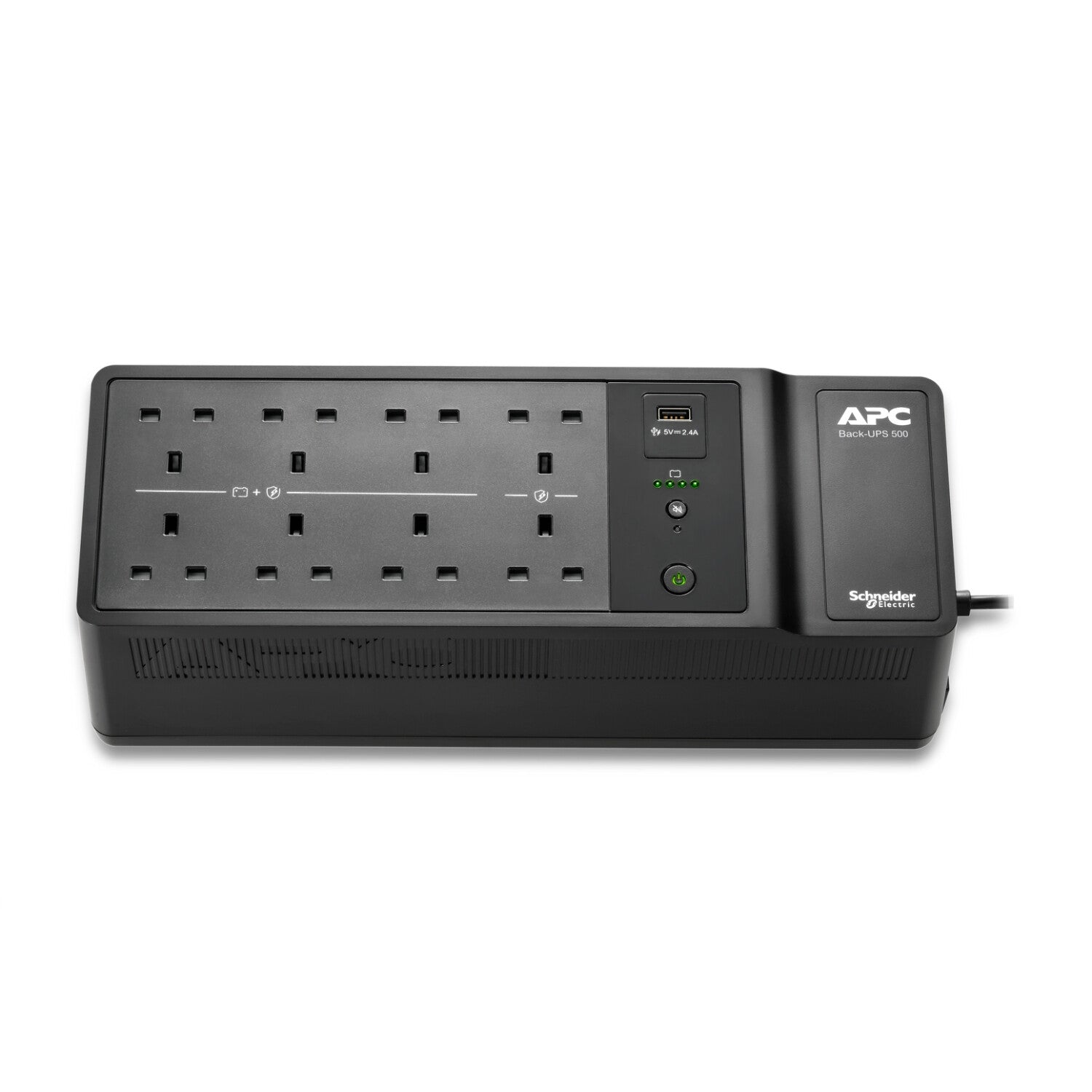

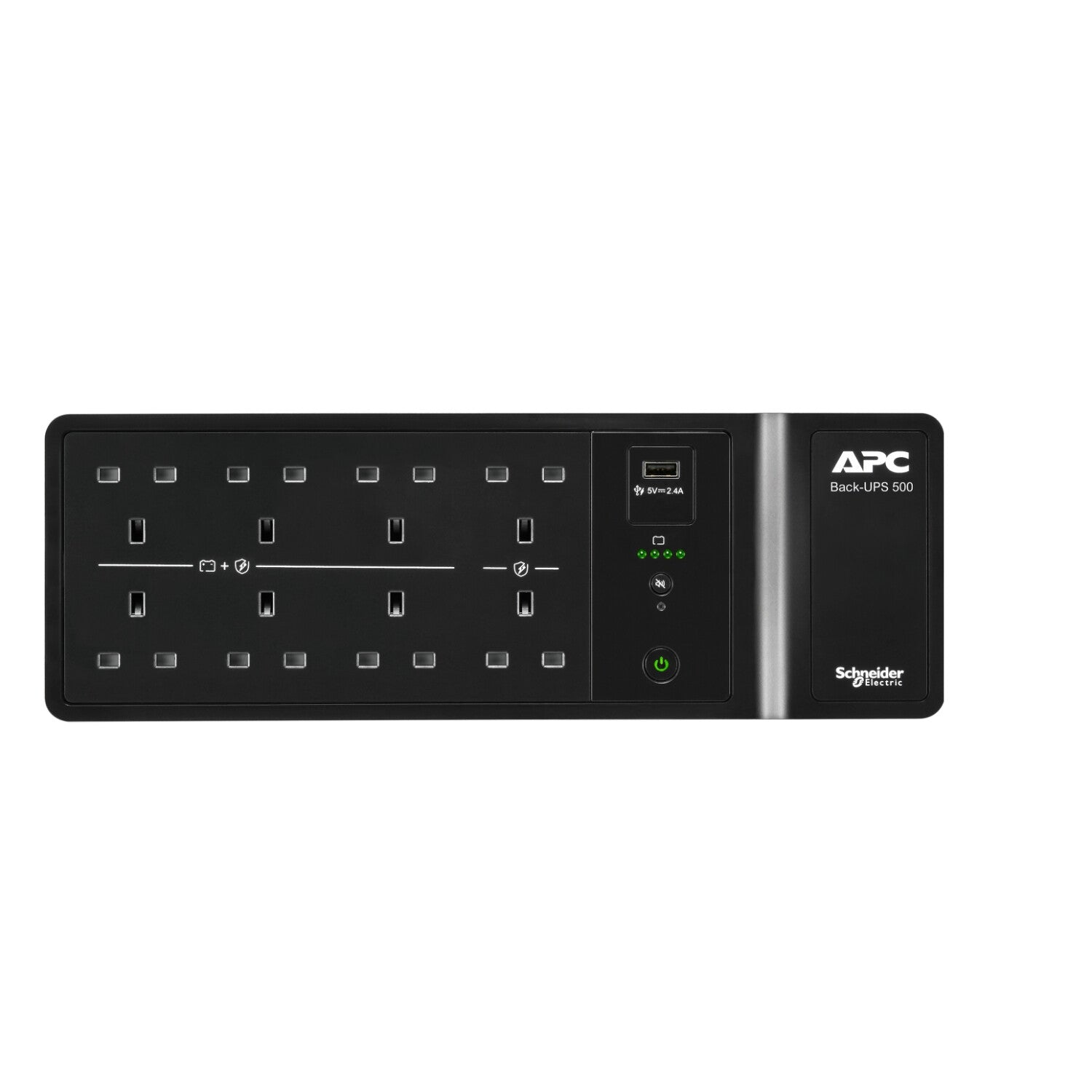

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 500VA floor/wall mount UPS has 8 total outlets, 6 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 310 Joules. It has one USB port for smart charging of personal devices. This UPS has a 2-year warranty on unit and battery. 3-year warranty, €100,000 lifetime connected equipment protection policy, and free technical support exclusive for European community countries only. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Features
UPS topology
Standby (Offline)
Output power capacity
0.5 kVA
Output power
300 W
Waveform
Stepwise
Input operation voltage (min)
180 V
Input operation voltage (max)
266 V
Input frequency
47/63 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
230 V
Maximum current
10 A
Surge energy rating
310 J
Response time
6 ms
Number of input phases
1
Number of output phases
1
Single-phase input voltage supported
230 V
Efficiency
80%
Noise level
45 dB
Surge protection
Yes
Ports & interfaces
AC outlet types
BS 1363, Type G (BS 1363)
Power plug
BS1363A
AC outlets quantity
8 AC outlet(s)
USB port
Yes
USB port type
USB Type-A
USB 2.0 ports quantity
1
SmartSlot
No
SmartConnect port
No
Battery
Battery replacement accessibility
End-user
Battery technology
Lead-Acid
Battery capacity
9 Ah
Battery voltage
12 V
Battery recharge time
6 h
Replacement battery cartridge
RBC46
Design
Form factor
Desktop
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 4572 m
Technical details
Preferred mounting position
no preference
Packaging without single use plastic
No
Take-back system
No
Sustainable packaging
No
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
